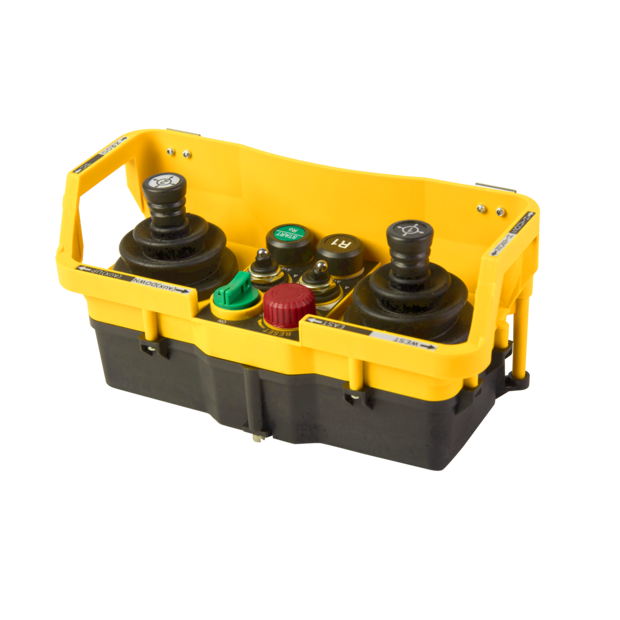

SAGA1-L40N (Joystick)
The new generation SAGA1-L40N transmitter, is ergonomically designed with PLL synthersizer frequency control and high durability joystick. SAGA1-L40N is for a wide range of industrial applications (Tower Crane / Overhead Bridge Crane / Concrete Pump Truck / Hydraulic control).
SAGA1-L40N offer a large controls including 2 double axis joystick along with two(2) select switches. The light weight design transmitter greatly reduce the operator fatigue.
Features
■ Maximum 16 relays output per single command
■ Enhanced silicon rubber joystick cover
■ Joystick unit equipped with "optical sensor" for neutrol position control
■ Enhanced joystick mechanical gears for extending life cycle
Transmitter Quick Specs
Joystick / Pushbutton:
Five-step Joysticks x 2 / 3-position Toggle Switch x 2 / Single-step Pushbutton x 2 /
EMS Pushbtton / Rotary Key
Structure:
Enhanced Glass Fiber
Emission Power:
< 10 mW
Power Supply:
4 AA Size Disposable Battery / Rechargeable (Ni-MH)
LED Power Indicator:
3 Stages Power Indicator
Dimension:
230 x 95 x 110 mm (L x W x H)
Weight:
Approx. 750 g (w/o Batteries)
Receiver Qucik Specs
Dimension:
253 x 267 x 150 mm (L x W x H)
Weight:
Approx. 2400g (w/o Cable)
Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%, 12/24 VDC
