Radio Controls

SAGA1-K Series enable flexible, customised configuration for each application, including different functions such as push button modes (Momentary/ Latching), transmission range control, auto channel selection.

Enclosures are made from industrial-strength nylon and fiberglass composite materials for extra durability

Features
■ EMS Stop complied with EN ISO 13849-1 Cat.4 (PL=d)
■ Relay Jammed Detector
■ Receiver built-in horn (alarm)
■ Remote pairing design to make maintenance easier
■ Adjustable emission power to meet different application and industry field
■ Over4.3 billion (32 bits) sets unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Pre-wired receiver for quick and easy installation
■ PC software for customized configuration
■ Modular design and simple structure to increase the durability
■ Receiver F-type antenna connector easy for extending additional antenna

Transmitter Quick Specs



Pushbutton:
SAGA1-K1  ( 8 Single-step Pushbuttons+Rotary Key+EMS Pushbutton+Alarm )
SAGA1-K2  ( 8 Double-step Pushbuttons+Rotary Key+EMS Pushbutton+Alarm )


Frequency:
433/434 MHz


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
4 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
163 x 49 x 45 mm (L x W x H)


Weight:
Approx. 210g (w/o Batteries)




Receiver Quick Specs




Dimension:
167 x 154 x 88 mm (L x W x H)


Weight:
Approx. 2100g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%, 12/24 VDC





SAGA1-K Series Catalog Download Link


SAGA1-K Series enable flexible, customised configuration for each application, including different functions such as push button modes (Momentary/ Latching), transmission range control, auto channel selection.

Enclosures are made from industrial-strength nylon and fiberglass composite materials for extra durability

SAGA1-K3/K4 is perfect for more complex applications where large number of relay contacts are required (e.g. overhead cranes with tandem system).

Features
■ EMS Stop complied with EN ISO 13849-1 Cat.4 (PL=d)
■ Relay Jammed Detector
■ Receiver built-in horn (alarm)
■ Remote pairing design to make maintenance easier
■ Adjustable emission power to meet different application and industry field
■ Over4.3 billion (32 bits) sets unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Pre-wired receiver for quick and easy installation
■ PC software for customized configuration
■ Modular design and simple structure to increase the durability
■ Receiver F-type antenna connector easy for extending additional antenna

Transmitter Quick Specs



Pushbutton:
SAGA1-K3  ( 12 Single-step Pushbuttons+A/B Switches+Rotary Key+EMS Pushbutton+Alarm )
SAGA1-K4  ( 12 Double-step Pushbuttons+A/B Switches+Rotary Key+EMS Pushbutton+Alarm )


Frequency:
433/434 MHz


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
4 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
274 x 77 x 42 mm (L x W x H)


Weight:
Approx. 385g (w/o Batteries)




Receiver Quick Specs




Dimension:
310 x 160 x 95 mm (L x W x H)


Weight:
Approx. 2900g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC





SAGA1-K Series Catalog Download Link

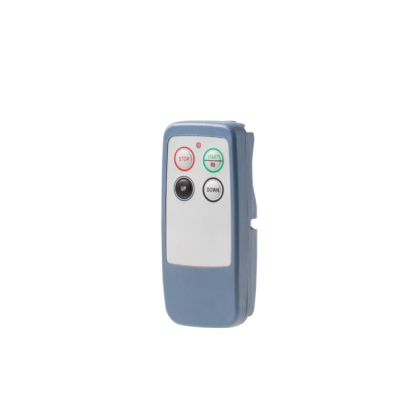

SAGA1-L4 is compact, pocket sized and lightweight design for handheld industrial remote control. It has 2 single-step pushbuttons, providing extensive working solutions in different application such as winch, industrial door control, conveyor, material handling, boat lifting, agriculture and tow truck.

Features
■ Lightweight user friendly pocket sized design
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation
Transmitter Quick Specs




Pushbutton:
SAGA1-L4  ( 2 Single-step Pushbuttons + Start Pushbutton + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
120 x 55 x 25 mm (L x W x H)


Weight:
Approx. 120g (w/o Batteries)





Receiver Quick Specs




Dimension:
161 x 74 x 52 mm (L x W x H)


Weight:
Approx. 1100g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,   12/24 VDC

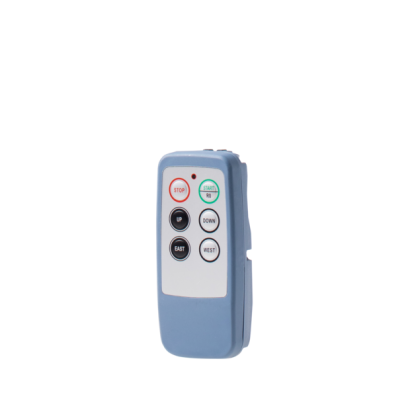

SAGA1-L6 is compact, pocket sized and lightweight design for handheld industrial remote control. It has 4 single-step pushbuttons, providing extensive working solutions in different application such as winch, industrial door control, conveyor, material handling, boat lifting, agriculture and tow truck.

Features
■ Lightweight user friendly pocket sized design
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation
Transmitter Quick Specs




Pushbutton:
SAGA1-L6  ( 4 Single-step Pushbuttons + Start Pushbutton + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
120 x 55 x 25 mm (L x W x H)


Weight:
Approx. 120g (w/o Batteries)





Receiver Quick Specs




Dimension:
161 x 74 x 52 mm (L x W x H)


Weight:
Approx. 1100g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,   12/24 VDC

SAGA1-L8 is compact, pocket sized and lightweight design for handheld industrial remote control. It has 6 single-step pushbuttons, providing extensive working solutions in different application such as winch, industrial door control, conveyor, material handling, boat lifting, agriculture and tow truck.

Features
■ Lightweight user friendly pocket sized design
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation
Transmitter Quick Specs




Pushbutton:
SAGA1-L8  ( 6 Single-step Pushbuttons + Start Pushbutton + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
120 x 55 x 25 mm (L x W x H)


Weight:
Approx. 120g (w/o Batteries)





Receiver Quick Specs




Dimension:
161 x 74 x 52 mm (L x W x H)


Weight:
Approx. 1100g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,   12/24 VDC

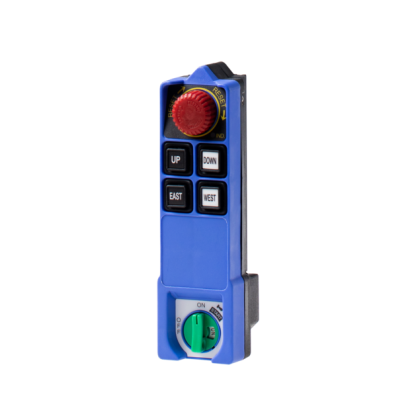

SAGA1-L6B is compact, pocket sized and lightweight design for handheld industrial remote control. It has 4 double-step pushbuttons, providing extensive working solutions in different application such as winch, industrial door control, conveyor, material handling, boat lifting, agriculture and tow truck.

Features
■ Lightweight user friendly pocket sized design
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation
Transmitter Quick Specs




Pushbutton:
SAGA1-L6B  ( 4 Double-step Pushbuttons + Rotary Start Key + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
163 x 49 x 45 mm (L x W x H)


Weight:
Approx. 210g (w/o Batteries)




Receiver Quick Specs




Dimension:
161 x 74 x 52 mm (L x W x H)


Weight:
Approx. 1100g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,   12/24 VDC

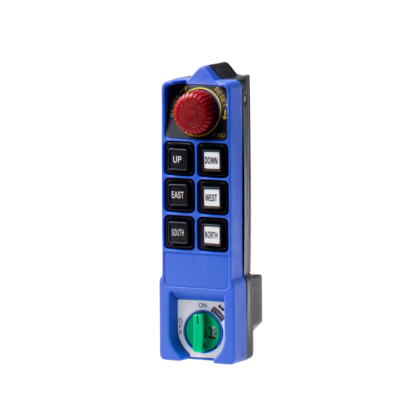

SAGA1-L8B is compact, pocket sized and lightweight design for handheld industrial remote control. It has 6 single-step pushbuttons, providing extensive working solutions in different application such as winch, industrial door control, conveyor, material handling, boat lifting, agriculture and tow truck.

Features
■ Lightweight user friendly pocket sized design
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation
Transmitter Quick Specs




Pushbutton:
SAGA1-L8B  ( 6 Single-step Pushbuttons + Rotary Start Key + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
163 x 49 x 45 mm (L x W x H)


Weight:
Approx. 210g (w/o Batteries)




Receiver Quick Specs




Dimension:
161 x 74 x 52 mm (L x W x H)


Weight:
Approx. 1100g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,   12/24 VDC

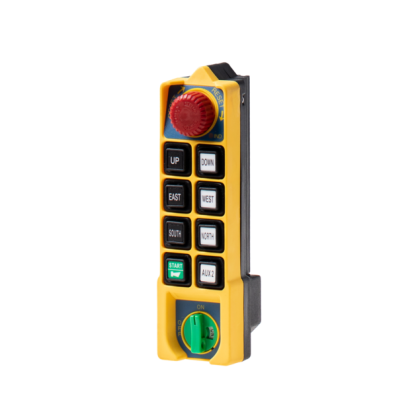

SAGA1-L10/L10-1 transmitters are configured with 8 single/double detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.

Features
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation

Transmitter Quick Specs



Pushbutton:
SAGA1-L10  ( 8 Double-step Pushbuttons + Rotary Start Key + EMS Pushbutton )
SAGA1-L10-1  ( 8 Single-step Pushbuttons + Rotary Start Key + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
163 x 49 x 45 mm (L x W x H)


Weight:
Approx. 210g (w/o Batteries)




Receiver Quick Specs




Dimension:
167 x 154 x 88 mm (L x W x H)


Weight:
Approx. 1400g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC






SAGA1-L12/L12-1 transmitters are configured with 11 double / 12 single detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.

Features
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation

Transmitter Quick Specs



Pushbutton:
SAGA1-L12  ( 11 Double-step Pushbuttons + 1 Single-step Pushbutton + EMS Pushbutton )
SAGA1-L12-1  ( 12 Single-step Pushbuttons + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
274 x 77 x 42 mm (L x W x H)


Weight:
Approx. 400g (w/o Batteries)




Receiver Quick Specs




Dimension:
253 x 267 x 150 mm (L x W x H)


Weight:
Approx. 3000g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC

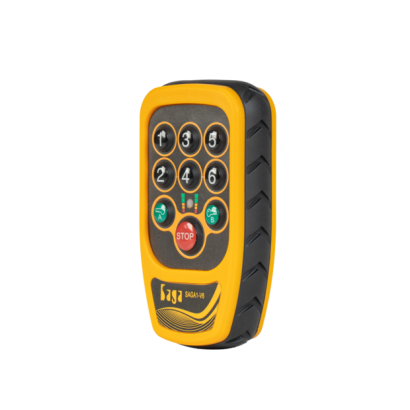

SAGA1-V6 series, a revolutionary industrial remote control.
A Radio remote system specialized in moving applications i.e. Towing Truck/Forest Winch/Hydraulic System...etc.
The remote control gives operator convenient access to the controls with efficiency and safer.

Features
■ Intelligent Radio Communication: The advanced RF technology assures the operator can monitor constantly the radio communication between Transmitter and receiver
■ Auto Channel Selection: This function provides an easy way to optimize channel arrangement based on the current situation in the field and also approaches non-interference from other radio systems
■ Power-on Password mode available: An extra layer of security with having password required to prevent unauthorized operator.
■ Wireless Remote Pairing：System data information can be transferred wireless and especially to register a replacement transmitter without any tool required.
■ PC software Programmable: The pushbuttons are able to be customized through its PC functional software upon Varity requests
■ Receiver pushbutton Panel (Optional available): Offering a pushbutton panel on receiver unit for special circumstances, i.e. transmitter damaged or lost
■ NC/NO relays equipped: All relays are NC/NO relay for Varity of requirements
■ Water/Dirt resistant rate: IP 67 certified/ Transmitter unit, IP66 certified / Receiver unit
■ Pre-wired Output cables: A prewired cable makes wiring installation effortless, quick and easy

Technical Data



Frequency Band:
868 MHz / 915 MHz (Frequency might be varied on different region)


Numbers of available relay:
8 Function Relays + Stop


Relay Rating:
NC/NO relay up to 20A


Transmitter Power:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


Receiver Power Supply:
10~42 VDC


Working Temperature Range:
-40℃ ~ +85℃


Reaction Time:
< 0.1 sec


Antenna:
Internal


LED Power Indicator:
3 Stages Power Indicator


Transmitter Dimension:
112 x 62 x 39 mm (L x W x H), SAGA1-V6
79 x 46 x 24 mm (L x W x H), SAGA1-V6-4


Receiver Dimension:
130 x 146 x 64 mm (L x W x H)


Transmitter Weight:
Approx. 135 g (w/o Batteries), SAGA1-V6
79 x 46 x 24 mm (L x W x H), SAGA1-V6-4


Receiver Weight:
Approx. 490 g (w/o Pushbutton Panel)
Approx. 525 g (w/ Pushbutton Panel)





SAGA1-V6 Series Catalog Download Link

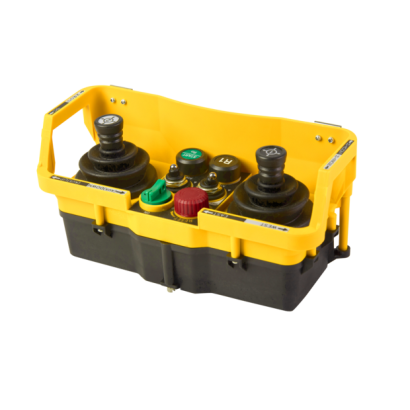

The new generation SAGA1-L40N transmitter, is ergonomically designed with PLL synthersizer frequency control and high durability joystick. SAGA1-L40N is for a wide range of industrial applications (Tower Crane / Overhead Bridge Crane / Concrete Pump Truck / Hydraulic control).

SAGA1-L40N offer a large controls including 2 double axis joystick along with two(2) select switches. The light weight design transmitter greatly reduce the operator fatigue.

Features
■ Maximum 16 relays output per single command
■ Enhanced silicon rubber joystick cover
■ Joystick unit equipped with "optical sensor" for neutrol position control
■ Enhanced joystick mechanical gears for extending life cycle

Transmitter Quick Specs



Joystick / Pushbutton:
Five-step Joysticks x 2  /  3-position Toggle Switch x 2  /  Single-step Pushbutton x 2 /
EMS Pushbtton / Rotary Key


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
4 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
230 x 95 x 110 mm (L x W x H)


Weight:
Approx. 750 g (w/o Batteries)





Receiver Qucik Specs




Dimension:
253 x 267 x 150 mm (L x W x H)


Weight:
Approx. 2400g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC
