Radio Controls

SAGA1-L10/L10-1 transmitters are configured with 8 single/double detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.

Features
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation

Transmitter Quick Specs



Pushbutton:
SAGA1-L10  ( 8 Double-step Pushbuttons + Rotary Start Key + EMS Pushbutton )
SAGA1-L10-1  ( 8 Single-step Pushbuttons + Rotary Start Key + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
163 x 49 x 45 mm (L x W x H)


Weight:
Approx. 210g (w/o Batteries)




Receiver Quick Specs




Dimension:
167 x 154 x 88 mm (L x W x H)


Weight:
Approx. 1400g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC

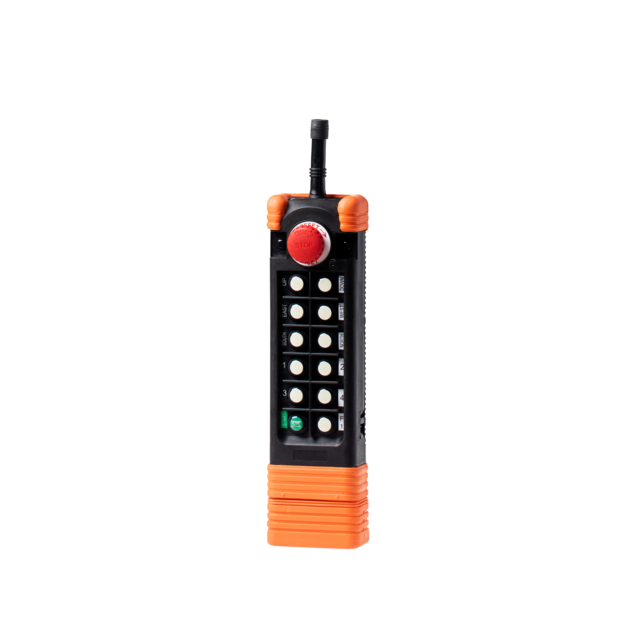

SAGA1-L12/L12-1 transmitters are configured with 11 double / 12 single detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.

Features
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation

Transmitter Quick Specs



Pushbutton:
SAGA1-L12  ( 11 Double-step Pushbuttons + 1 Single-step Pushbutton + EMS Pushbutton )
SAGA1-L12-1  ( 12 Single-step Pushbuttons + EMS Pushbutton )


Structure:
Enhanced Glass Fiber


Emission Power:
< 10 mW


Power Supply:
2 AA Size Disposable Battery / Rechargeable (Ni-MH)


LED Power Indicator:
3 Stages Power Indicator


Dimension:
274 x 77 x 42 mm (L x W x H)


Weight:
Approx. 400g (w/o Batteries)




Receiver Quick Specs




Dimension:
253 x 267 x 150 mm (L x W x H)


Weight:
Approx. 3000g (w/o Cable)


Power Supply:
24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC
