SAGA1-L12 Series

SAGA1-L12 Series

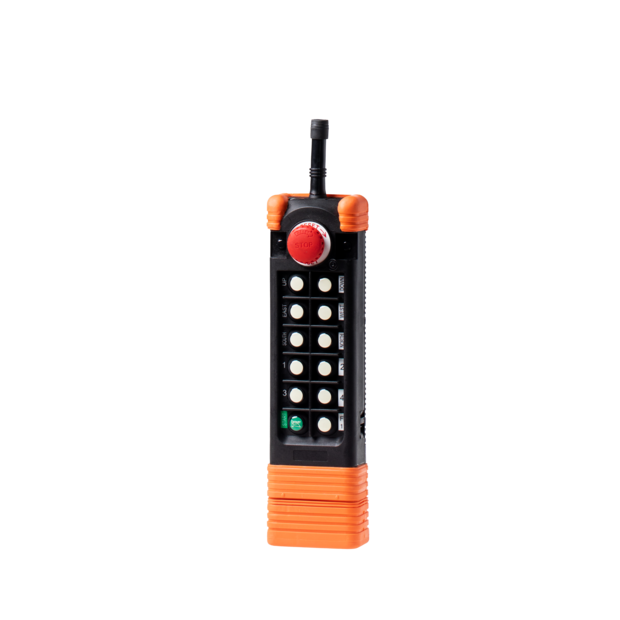

SAGA1-L12/L12-1 Transmitter.png
/

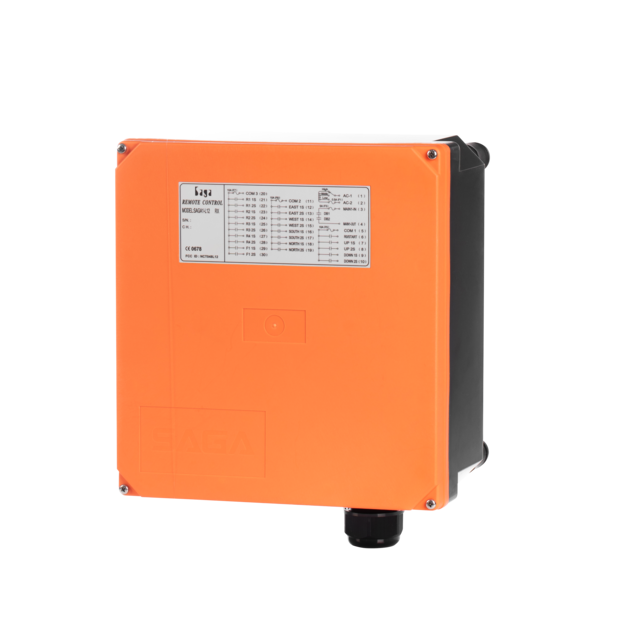

SAGA1-L12/L12-1 Receiver.png
/
  • SAGA1-L12/L12-1 Transmitter.png
  • SAGA1-L12/L12-1 Receiver.png
DETAIL
SAGA1-L12/L12-1 transmitters are configured with 11 double / 12 single detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.

Features
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation

Transmitter Quick Specs
Pushbutton: SAGA1-L12  ( 11 Double-step Pushbuttons + 1 Single-step Pushbutton + EMS Pushbutton )
SAGA1-L12-1  ( 12 Single-step Pushbuttons + EMS Pushbutton )
Structure: Enhanced Glass Fiber
Emission Power: < 10 mW
Power Supply: 2 AA Size Disposable Battery / Rechargeable (Ni-MH)
LED Power Indicator:   3 Stages Power Indicator
Dimension: 274 x 77 x 42 mm (L x W x H)
Weight: Approx. 400g (w/o Batteries)

Receiver Quick Specs
Dimension: 253 x 267 x 150 mm (L x W x H)
Weight: Approx. 3000g (w/o Cable)
Power Supply:   24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC
