Enclosures are made from industrial-strength nylon and fiberglass composite materials for extra durability
Features
■ EMS Stop complied with EN ISO 13849-1 Cat.4 (PL=d)
■ Relay Jammed Detector
■ Receiver built-in horn (alarm)
■ Remote pairing design to make maintenance easier
■ Adjustable emission power to meet different application and industry field
■ Over4.3 billion (32 bits) sets unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Pre-wired receiver for quick and easy installation
■ PC software for customized configuration
■ Modular design and simple structure to increase the durability
■ Receiver F-type antenna connector easy for extending additional antenna

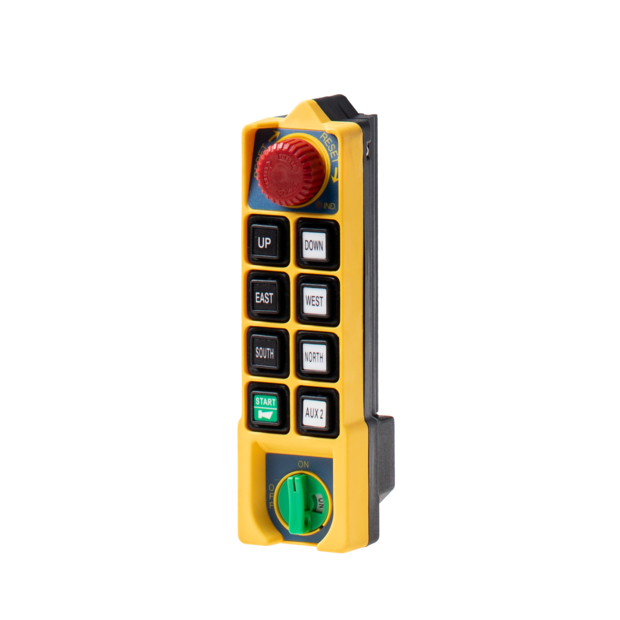

Transmitter Quick Specs
| Pushbutton: | SAGA1-K1 ( 8 Single-step Pushbuttons+Rotary Key+EMS Pushbutton+Alarm ) SAGA1-K2 ( 8 Double-step Pushbuttons+Rotary Key+EMS Pushbutton+Alarm ) |
| Frequency: | 433/434 MHz |
| Structure: | Enhanced Glass Fiber |
| Emission Power: | < 10 mW |
| Power Supply: | 4 AA Size Disposable Battery / Rechargeable (Ni-MH) |
| LED Power Indicator: | 3 Stages Power Indicator |
| Dimension: | 163 x 49 x 45 mm (L x W x H) |
| Weight: | Approx. 210g (w/o Batteries) |

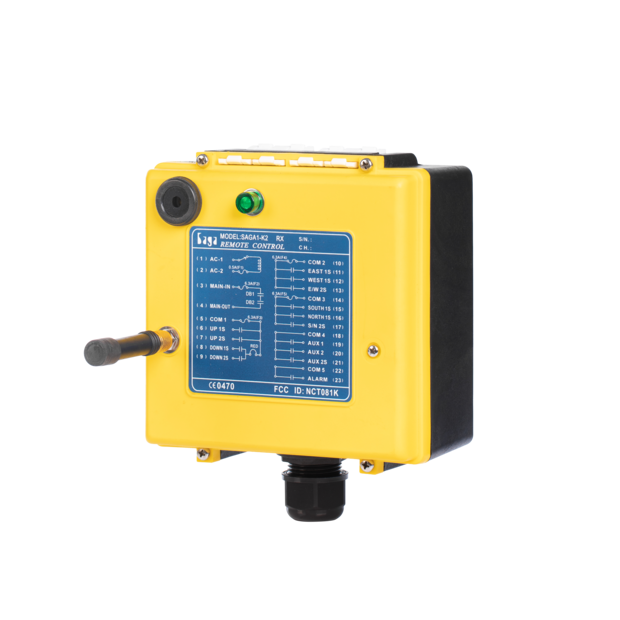

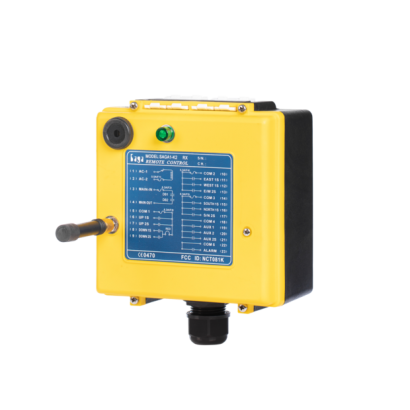

Receiver Quick Specs
| Dimension: | 167 x 154 x 88 mm (L x W x H) |
| Weight: | Approx. 2100g (w/o Cable) |
| Power Supply: | 24/48/110/220/380 VAC (50 / 60Hz) ±20%, 12/24 VDC |
SAGA1-K Series Catalog Download Link
