SAGA1-L10 Series

SAGA1-L10 Series

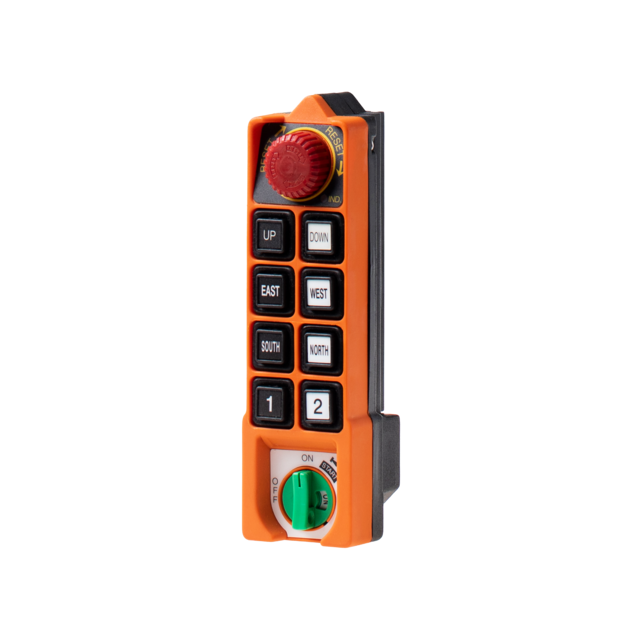

SAGA1-L10/L10-1 Transmitter.png
/

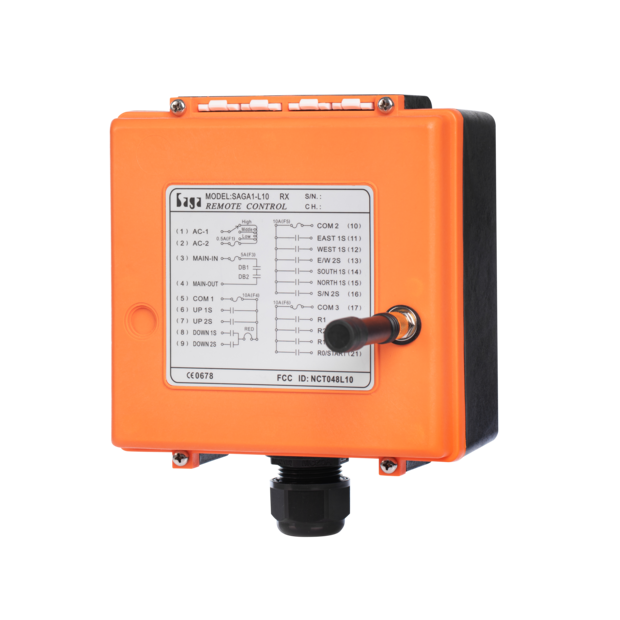

SAGA1-L10/L10-1 Receiver.png
/

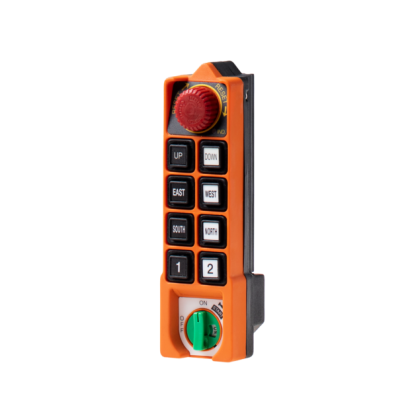

  • SAGA1-L10/L10-1 Transmitter.png
  • SAGA1-L10/L10-1 Receiver.png
DETAIL
SAGA1-L10/L10-1 transmitters are configured with 8 single/double detent push button switches, one Start and one Emergency Stop button (Mushroom). It features a multi-functional LED on the front panel and it gives status of transmitter (Battery power / Radio transmission / Error messages). The transmitter is powered with only two (2) AA batteries.

Features
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation

Transmitter Quick Specs
Pushbutton: SAGA1-L10  ( 8 Double-step Pushbuttons + Rotary Start Key + EMS Pushbutton )
SAGA1-L10-1  ( 8 Single-step Pushbuttons + Rotary Start Key + EMS Pushbutton )
Structure: Enhanced Glass Fiber
Emission Power: < 10 mW
Power Supply: 2 AA Size Disposable Battery / Rechargeable (Ni-MH)
LED Power Indicator:   3 Stages Power Indicator
Dimension: 163 x 49 x 45 mm (L x W x H)
Weight: Approx. 210g (w/o Batteries)

Receiver Quick Specs
Dimension: 167 x 154 x 88 mm (L x W x H)
Weight: Approx. 1400g (w/o Cable)
Power Supply:   24/48/110/220/380 VAC (50 / 60Hz) ±20%,  12/24 VDC
