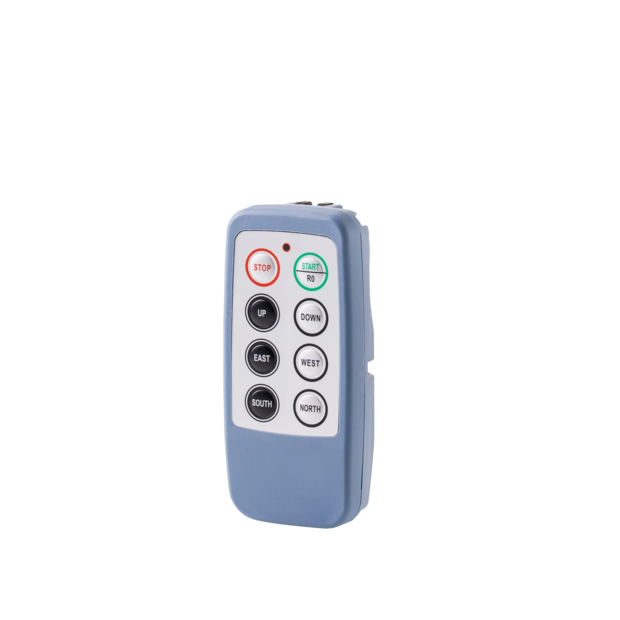

SAGA1-L8 is compact, pocket sized and lightweight design for handheld industrial remote control. It has 6 single-step pushbuttons, providing extensive working solutions in different application such as winch, industrial door control, conveyor, material handling, boat lifting, agriculture and tow truck.
Features
■ Lightweight user friendly pocket sized design
■ Over 4.3 billion (32 bits) unique ID code
■ Operating distance up to 100M
■ Working temperature: -40℃ ~ +85℃
■ Shock resistant against impact for harsh environment
■ Low power consumption transmitter - Last up to 3 months with 2 AA batteries
■ PC software for customized configuration
■ Pre-wired receiver for quick and easy installation
| Pushbutton: | SAGA1-L8 ( 6 Single-step Pushbuttons + Start Pushbutton + EMS Pushbutton ) |
| Structure: | Enhanced Glass Fiber |
| Emission Power: | < 10 mW |
| Power Supply: | 2 AA Size Disposable Battery / Rechargeable (Ni-MH) |
| LED Power Indicator: | 3 Stages Power Indicator |
| Dimension: | 120 x 55 x 25 mm (L x W x H) |
| Weight: | Approx. 120g (w/o Batteries) |

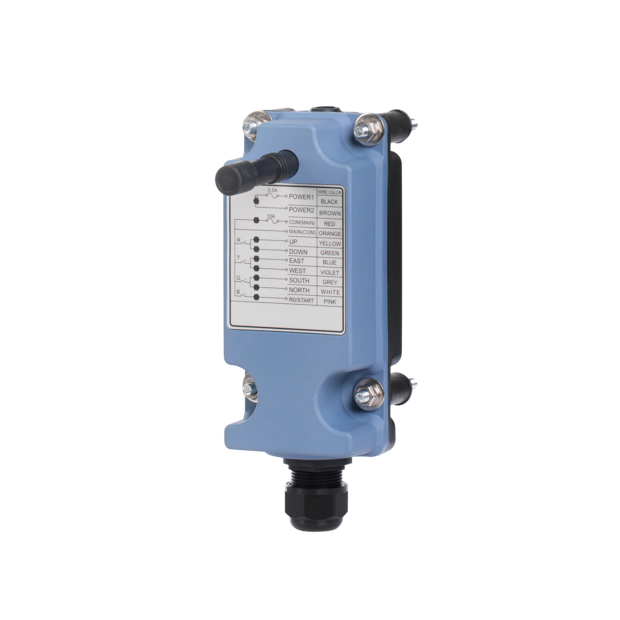

Receiver Quick Specs
| Dimension: | 161 x 74 x 52 mm (L x W x H) |
| Weight: | Approx. 1100g (w/o Cable) |
| Power Supply: | 24/48/110/220/380 VAC (50 / 60Hz) ±20%, 12/24 VDC |
